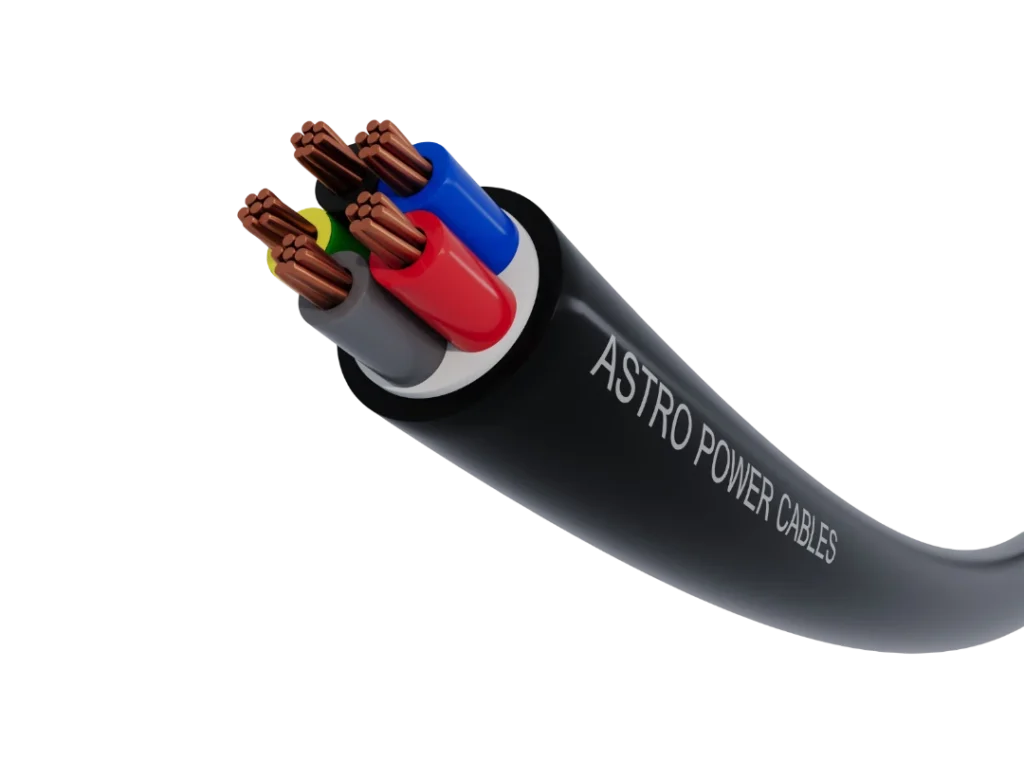

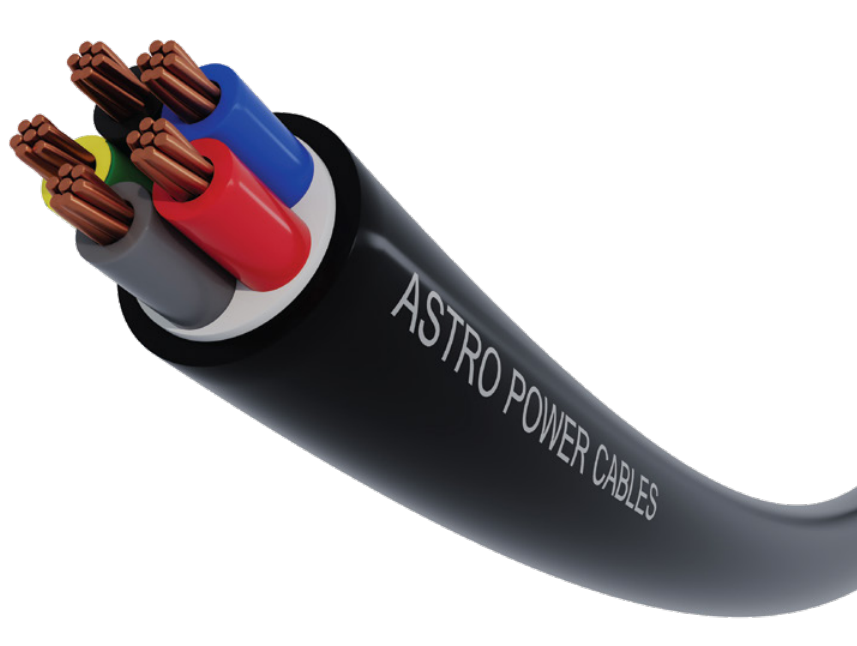

N2XY

Multi Core Cables with cross-linked polyethylene insulated and PVC Sheathed

APPLICATION

Designed for low-voltage systems in industrial applications, these cables with enhance durability for underground use and with extra mechanical protection. Mount them easily on trays, in conduits, or on walls.

Construction

Wire Specifications
Conductor Round Stranded Annealed Copper as per class 2 of IEC 60228
Insulation XLPE applied around the conductor for 90c
Colors Color: can be supplied on request
Sheath PVC outer sheath 90c
Packing Cables with C.S.A from 1.5 to 6 sqmm to be supplied in coil of 100 meters Cables with C.S.A from 10 to 35 sqmm to be supplied in wooden drum of 1000 meters or 2000 meters

Ratings

Wire Specifications
Temperature - 25 C to + 90 C
Voltage 600/1000 V
Applicable Standards IEC 60228, IEC 60502-1
Flame Retardant IEC 60332-1

Conductor Flexibility Class 2 IEC 60228

Rated Voltage 600/1000 V

Minimum Bending Radius (mm) 10 x Overall Diameter

Max conductor Temp in service 90 C

Max. short-circuit temperature: 250°C Minimum installation and handling temperature: 5ºC

Flame retardant IEC 60332-1-2
