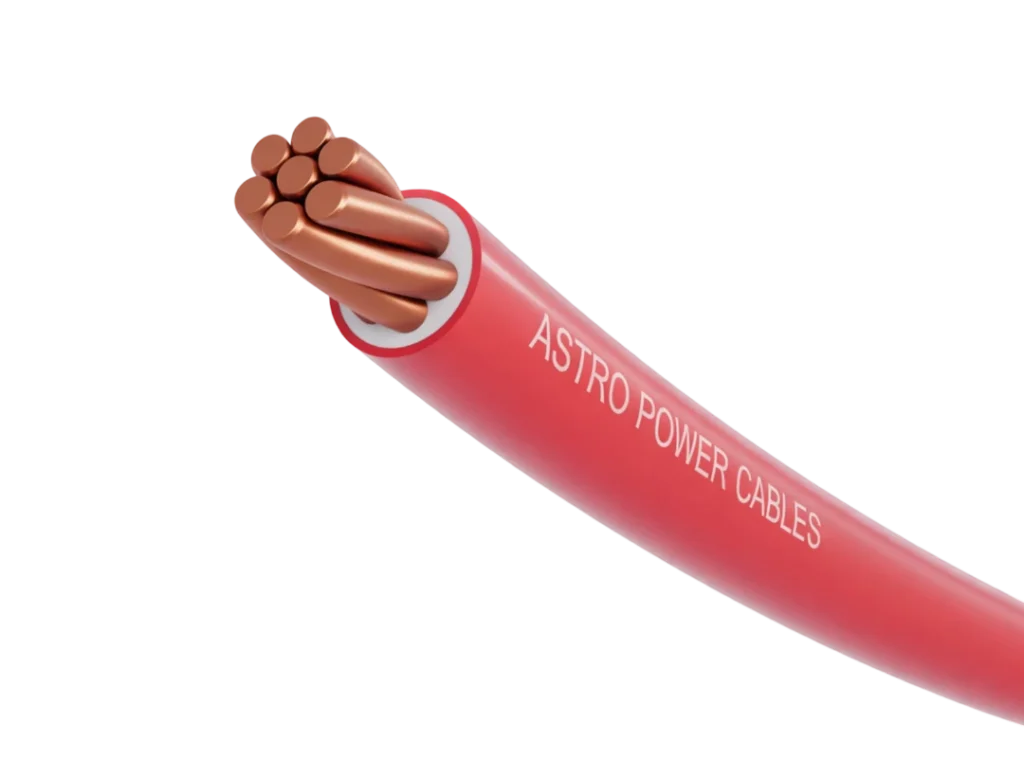

NYA
CU-PVC 450/750 Single Core non-sheathed Cable with Stranded Copper Conductors and PVC Insulated
APPLICATION
Building wire is used to carry electricity within buildings and is ideal for electrical wiring systems, switchboards and control panels.
Construction
| Conductor | Round Stranded Annealed Copper as per class 2 of IEC 60228 |
|---|---|
| Insulation | PVC applied around the conductor for 70c and 90c ( As Per Request ) |
| Colors | Color: Red ,Yellow ,Blue ,Black, Grey, Brown,White, V/J Any other color can be supplied on request |
| Packing | Wires with C.S.A up to 35 mm2 are rolled and wrapped into coils of 100 Yards/Meters Wires with C.S.A 50 mm2 and above are wound on Wooden drums |
Ratings
| Temperature | - 25 to + 70 C or - 25 C to + 90 C |
|---|---|
| Voltage | 450/750 V |
| Applicable Standards | IEC 60228, IEC 60227-3 |
Conductor Flexibility Class 2 IEC 60228
Rated Voltage 450/750 V
Minimum Bending Radius (mm) 12 x Overall Diameter
Max conductor Temp in service 70 C and 90 C
Max. short-circuit temperature: 160°C Installation and handling temperature: -5ºC. - 50ºC
Flame retardant IEC 60332-1-2
