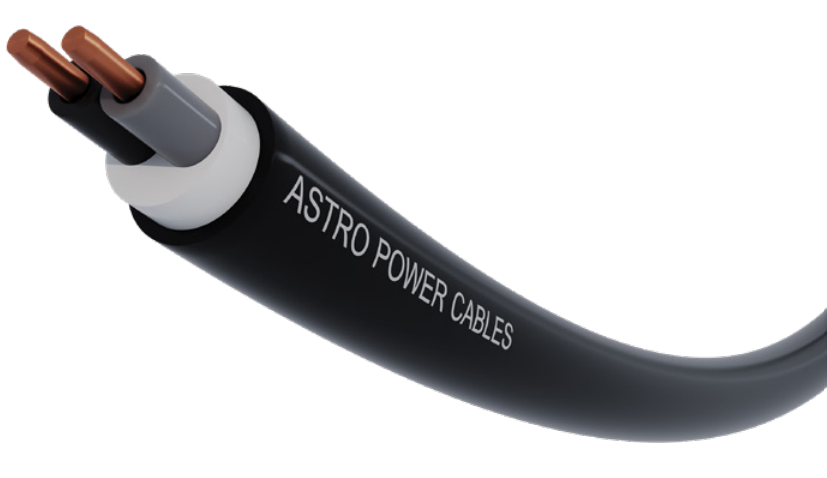

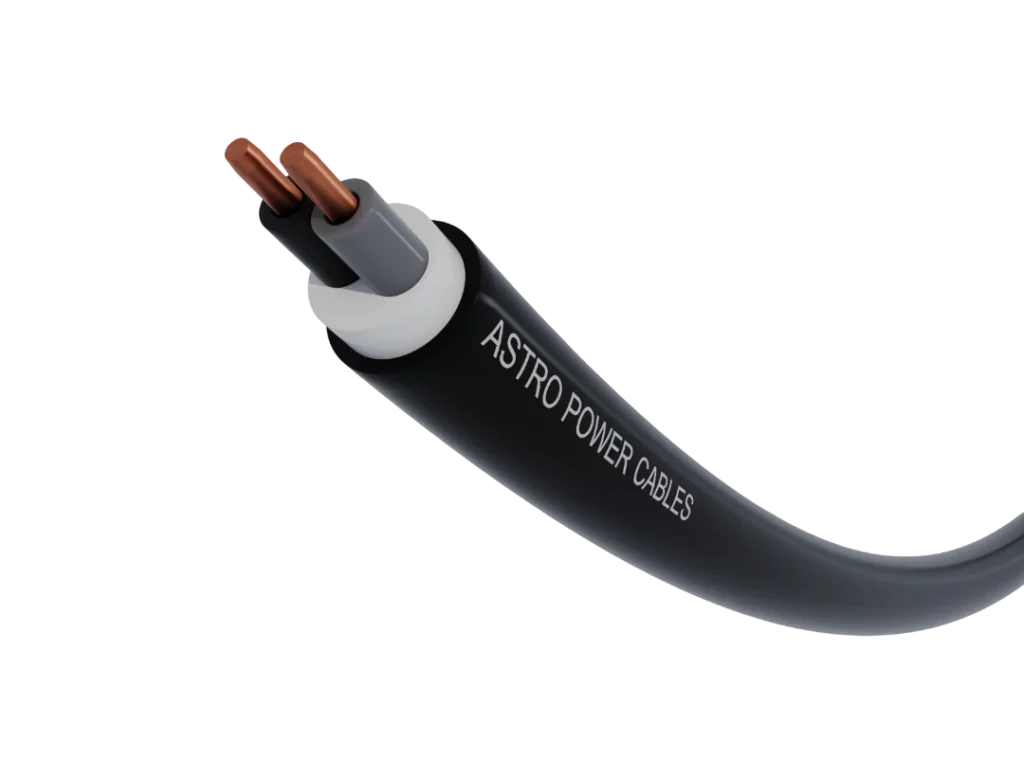

NYM Solid
APPLICATION
Building wire is used in fixed installtion in conduit in dry location and inter wiring in switchboard and control panel
Construction
| Conductor | Round Solid Annealed Copper as per class 1 of IEC 60228 |
|---|---|
| Insulation | PVC applied around the conductor for 70c |
| Colors | Color: can be supplied on request |
| Sheath | PVC outer sheath 70c |
| Packing | Cables to be supplied in wooden drum of 1000 meters or 2000 meters |
Ratings
| Temperature | - 25 C to + 70 C |
|---|---|
| Voltage | 300/500 V |
| Applicable Standards | IEC 60228, IEC 60227-4 |
Conductor Flexibility Class 1 IEC 60228
Rated Voltage 300/500 V
Minimum Bending Radius (mm) 10 x Overall Diameter
Max conductor Temp in service 70 C
Max. short-circuit temperature: 160°C Minimum installation and handling temperature: 5ºC
Flame retardant IEC 60332-1-2
