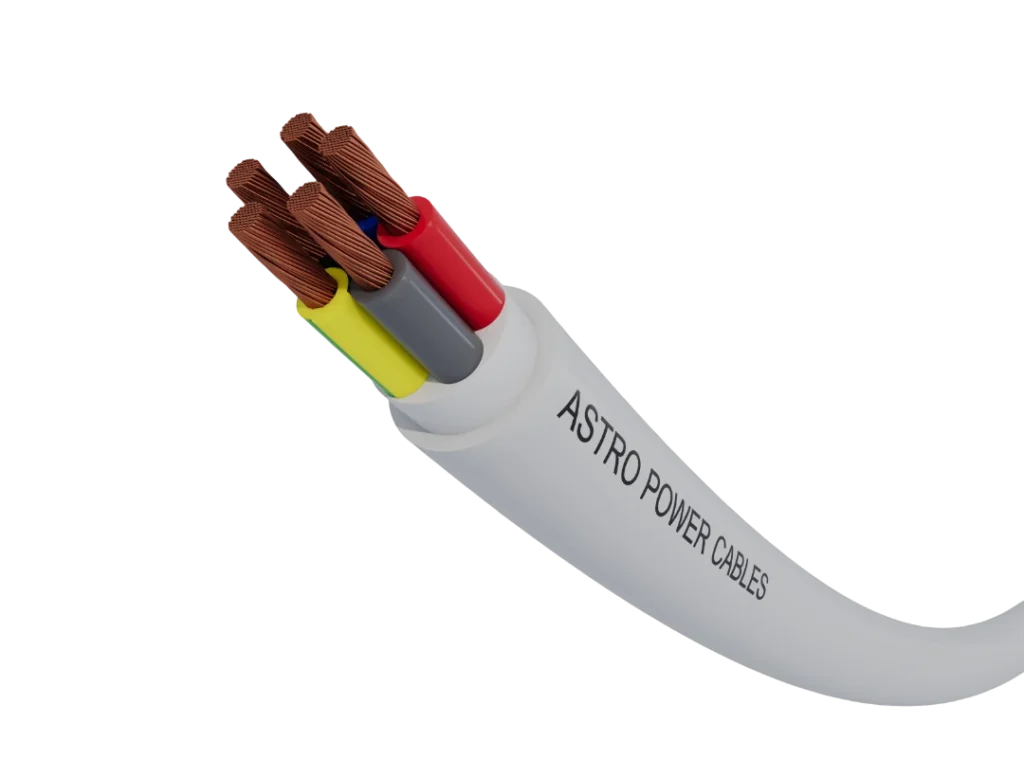

NYMHY
Multi Core Cable with Flexible Copper Conductor and PVC Insulated and sheathed
APPLICATION
Used for transmitting electricity within buildings, making it perfect for wiring systems, switchboards, and control panels
Construction
| Conductor | Round Flexible Annealed Copper as per class 5 of IEC 60228 |
|---|---|
| Insulation | PVC applied around the conductor for 70c OR 90 c |
| Colors | Color: can be supplied on request |
| Sheath | PVC outer sheath 70c OR 90 c |
| Packing | Cables with C.S.A from 1.5 to 10 sqmm to be supplied in coil of 100 meters Cables with C.S.A from 16 to 35 sqmm to be supplied in wooden drum of 1000 meters or 2000 meters |
Ratings
| Temperature | - 25 to + 70 C or - 25 to + 90 C |
|---|---|
| Voltage | 300/500 V |
| Applicable Standards | IEC 60228, IEC 60227-5 |
Conductor Flexibility Class 5 IEC 60228
Rated Voltage 300/500 V
Minimum Bending Radius (mm) 6 x Overall Diameter
Max conductor Temp in service 70 C and 90 C
Max. short-circuit temperature: 160°C Minimum installation and handling temperature: 5ºC
Flame retardant IEC 60332-1-2
