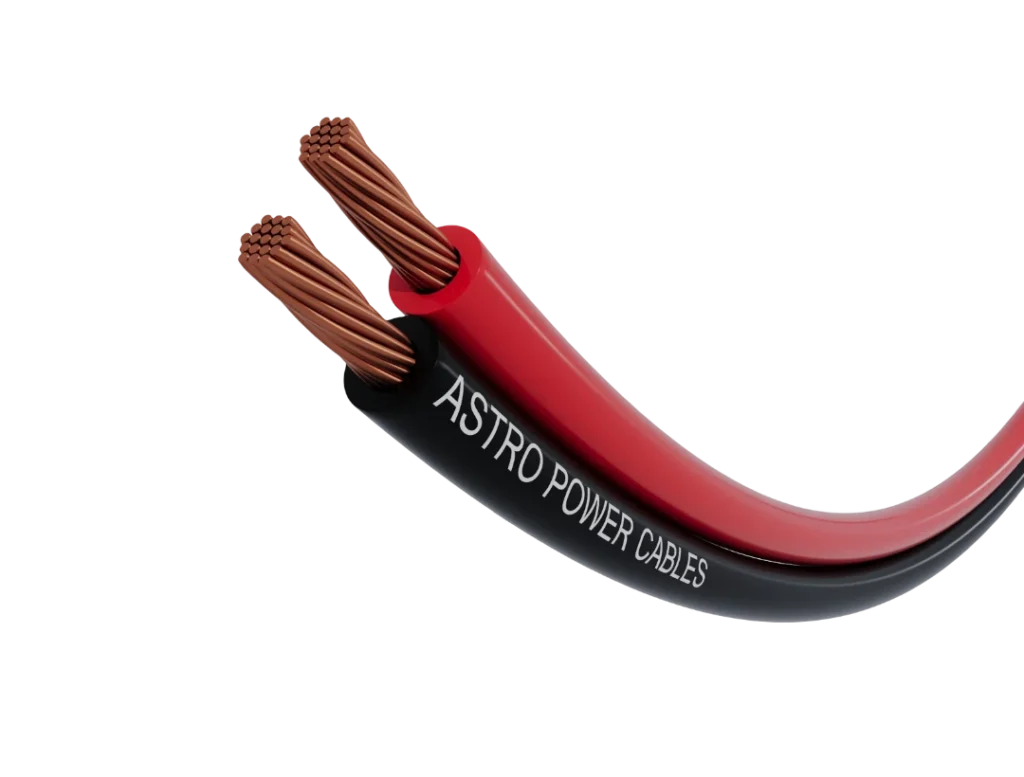

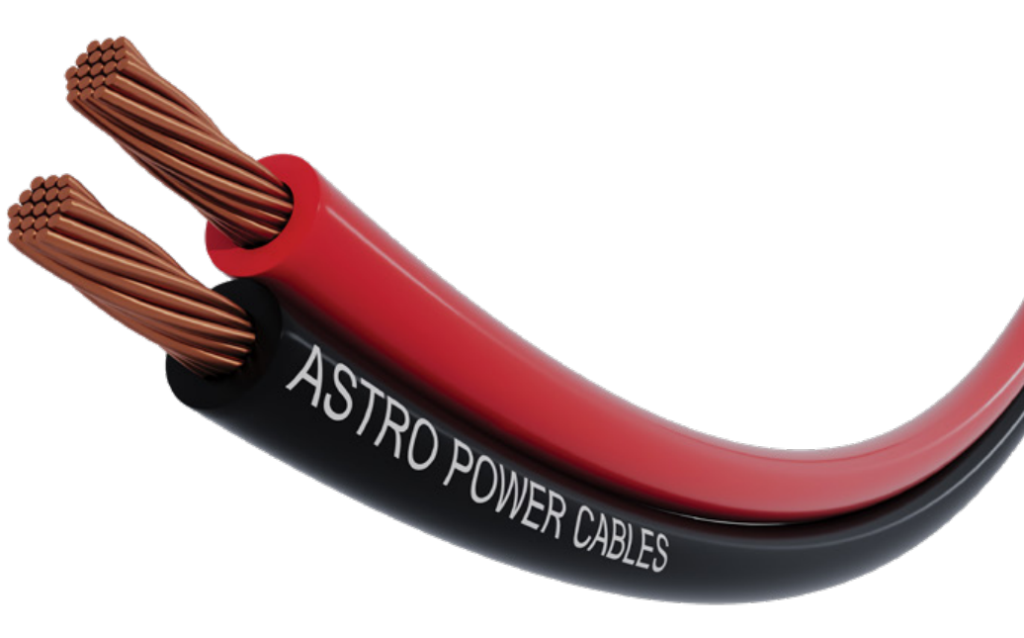

NYZ
Two Flat Cores and PVC Insulated
APPLICATION
Two conductor cable is ideal for dry environments, connecting portable appliances and lighting circuits. It ensures flexibility, durability, and easy separation of insulated wires.
Construction
| Conductor | Round Flexible Annealed Copper as per class 5 of IEC 60228 |
|---|---|
| Insulation | Two conductors are laid flat and parallel, covered with the PVC insulating material by dual extrusion |
| Colors | Color: can be supplied on request |
| Packing | Cables rolled and wrapped into coils of 100 yards |
Ratings
| Temperature | - 15 C to + 70 C |
|---|---|
| Voltage | 300/300 V |
| Applicable Standards | IEC 60228, IEC 60227-5 |
Conductor Flexibility Class 5 IEC 60228
Rated Voltage 300/300 V
Minimum Bending Radius (mm) 6 x Overall Diameter
Max conductor Temp in service 70 C and 90 C
Max. short-circuit temperature: 160°C Minimum installation and handling temperature: 5ºC
Flame retardant IEC 60332-1-2
