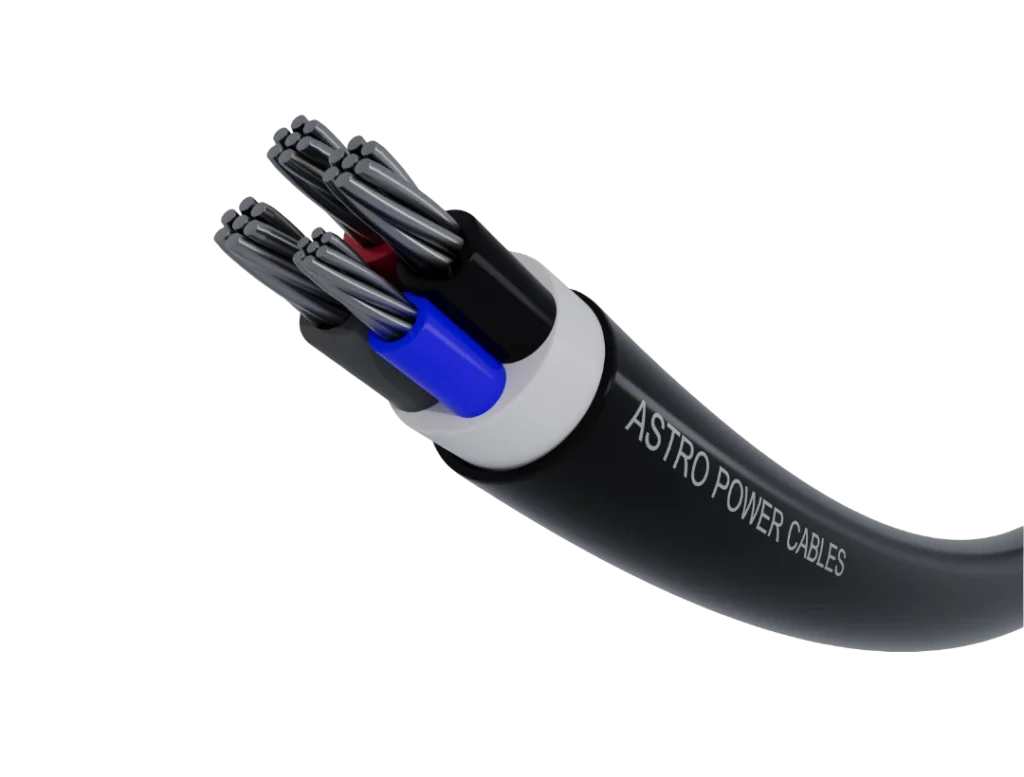

NA2XY
APPLICATION
These power and fixed wiring cables are used in low
voltage installation systems. They are welladapted to
underground use in industrial applications with an
additional mechanical protection. These cables can be
fixed on cable trays, within conduits or fixed to walls.
Construction
| Conductor | Round Stranded Aluminum as per class 2 of IEC 60228 |
|---|---|
| Insulation | XLPE applied around the conductor for 90c |
| Colors | Color: Can be supplied on request |
| Sheath | PVC outer sheath 90c |
| Packing | Cables with C.S.A from 16 to 500 mm2 to be supplied on wooden drum of 1000 meters or 2000 meters. |
Ratings
| Temperature | - 25 C to + 90 C |
|---|---|
| Voltage | 600/1000 V |
| Applicable Standards | IEC 60228, IEC 60502-1 |
| Flame Retardant | IEC 60332-1 |
Conductor Flexibility Class 2 BS EN 60228
Rated Voltage 600/1000 V
Minimum Bending Radius (mm) 10 x Overall Diameter
Max conductor Temp in service 90 C
Max. short-circuit temperature: 250°C Minimum installation and handling temperature: 5ºC.
Flame retardant IEC 60332-1-2
